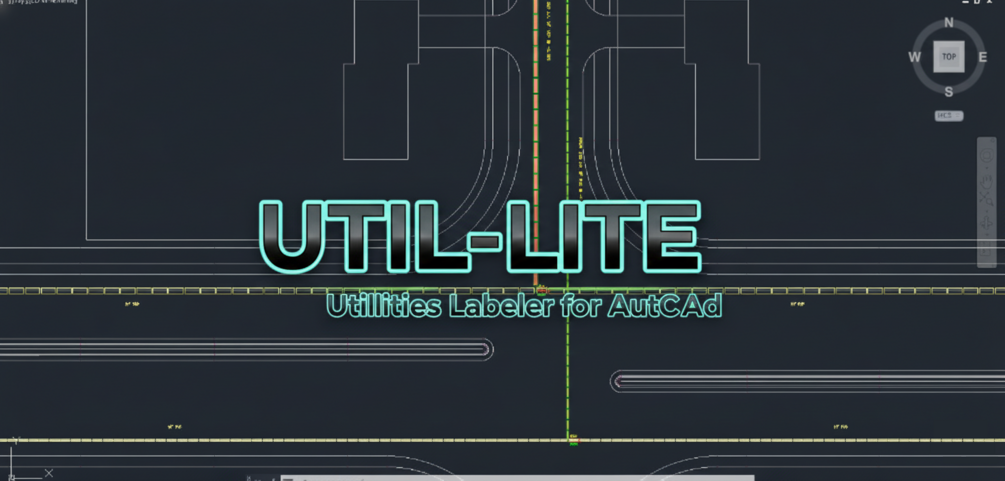

UTIL-LITE – Utilities Labeler for AutoCAD
What is UTIL-LITE?
UTIL-LITE is an AutoLISP-based utilities labeling tool for AutoCAD, built for civil CAD workflows.
It standardizes how existing and proposed utility runs are called out on your plans, so every sheet in the set reads the same instead of looking like a one-off.
What it does
- Creates consistent utility callouts using rectangles, centerlines, and (for proposed) hatch on your chosen layers.
- Clearly distinguishes EXISTING vs PROPOSED so it’s obvious what is being built and what is already there.
- Tags runs with XDATA so you can later clean up or delete by type (for example, delete all ESTM or PSAN labels from a drawing).
- Cuts down on manual offsetting, trimming, copying, and relabeling when utility layouts change.
The focus of the LITE version is the core workflow: runs → standardized labels → quick cleanup by type.
Where it fits in your workflow
UTIL-LITE is a drafting automation tool. It fits best when:
- You are drafting utility plans (water, sewer, storm, etc.) and want a consistent way to label main runs.
- You need a clear visual distinction between existing and proposed utilities that is easy for everyone in the office to follow.
- You are tired of hunting down old labels when a run changes and want a more reliable delete-by-type clean-up workflow.
Requirements
- AutoCAD on Windows (full version).
- Ability to load AutoLISP/VLX routines (standard AutoCAD functionality).
- Basic comfort with AutoCAD’s support paths / startup routines if you want it to load automatically.
Note: This has not been formally tested on AutoCAD LT or verticals. Use at your own discretion in those environments.
What you get
- UTIL-LITE.vlx – main automation plugin with a built-in 20-run / 7-day trial.
- (Optional) Sample DWG – example layers and settings you can adapt to your own standard.
- ReadMe.txt – quick setup, loading steps, and workflow overview.
- License Instructions – how to get your hardware / run ID and activate your license using the Hard-1 model.
- End User License Agreement (EULA) – terms, restrictions, and licensing conditions.
- Free minor updates and bug fixes for this LITE version.
If a future PRO or Utilities Suite version is released with expanded features, it will be offered as a separate product.
Support
Reasonable email support is included for:
- Installation and loading.
- Basic usage questions.
For now, please reach out at: autolispwizard@gmail.com
Important disclaimer
UTIL-LITE is a drafting productivity tool only.
It does not perform engineering design or code checks, and it does not replace your professional judgment or any required calculations. You remain fully responsible for:
- Verifying all geometry, labels, and dimensions shown in your drawings.
- Ensuring compliance with applicable codes, standards, and office practice.
- Any use of this tool in documents that are submitted, permitted, or sealed.
Licensing and Refund Policy
UTIL-LITE uses AutoLISP Wizard’s Hard-1 licensing model. A time-limited trial (20 runs or 7 days, whichever comes first) is included so you can evaluate the tool in your own workflow before activation.
After purchase and activation, your license token is tied to a specific workstation and user profile. Refund requests will only be considered within 15 days of the original Gumroad purchase date. If a refund is approved, the associated activation token may be revoked for future activations, and you are required to uninstall the software and discontinue use, in accordance with the EULA, Gumroad’s policies, and any applicable local regulations.
Demo
You can watch a short UTIL-LITE demo here:
If you have questions about activation, moving a license, or whether you may qualify for a refund, email autolispwizard@gmail.com with your order details.
